Jaws

Nose piece 3.2

Nose piece 4

Nose piece 5

Clamping sleeve

Jaw pusher

Scraper ring

Front nozzle

Hanger

Rear screwing

Ring

Covering

Small pin

Spring

Air supply – red color (<2020)

Air supply ring - red (M10x1.5) (>2020)

Body bottom

Hydropneumatic piston

Pneumatic piston

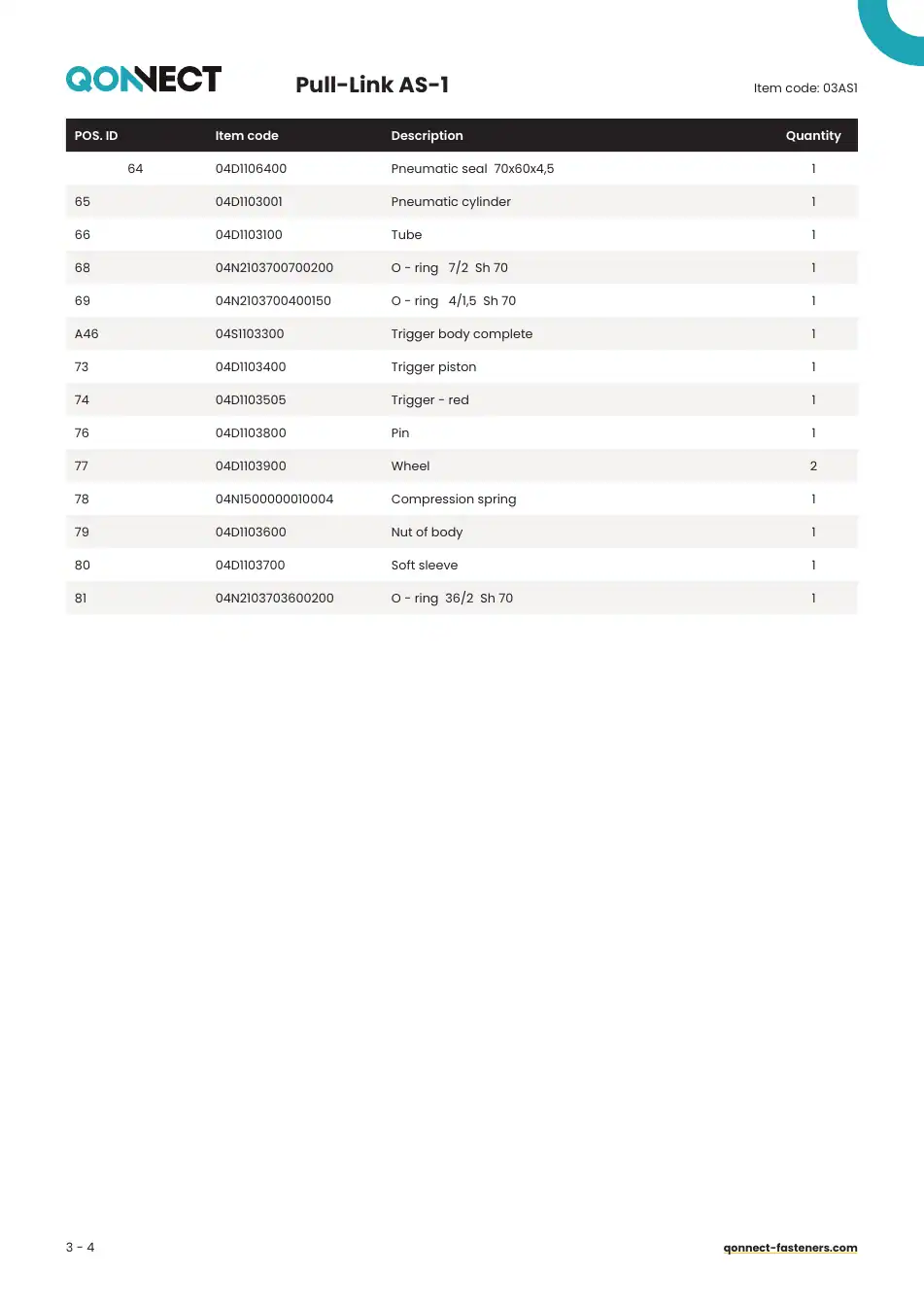

Pneumatic cylinder

Tube

Trigger piston

Trigger - red

Nut of body

Soft sleeve

Wheel

Guiding band

Pneumatic seal 70x60x4,5

Pneumatic seal 32x25x4,5

Screw M4x8 DIN 912

Screw M4x8 imbus

Screw M8x20 DIN 7984

Compression spring

O - ring 4/1,5 Sh 70

O - ring 7/2 Sh 70

O - ring 7,1/1,6 Sh 70

O - ring 24/1,5 Sh 70

O - ring 36/2 Sh 70

O - ring 38/2 Sh 70

O - ring 4/1,5 Sh 90

O - ring 15/1,5 Sh 90

Pneumatic seal 14

Plastic ball 9

Steel ball 4,762

Steel ball 8

Conduit - suction complete

Conduit - suction

Hydraulic piston complete
